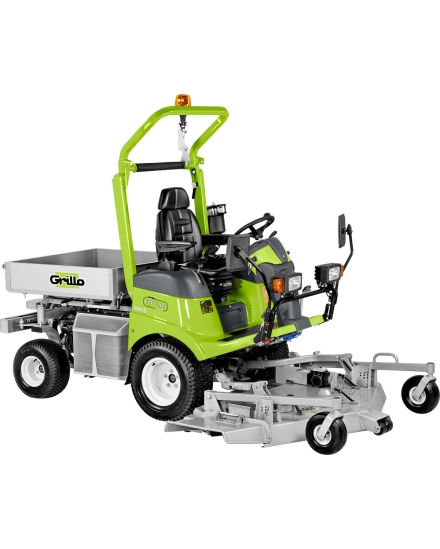

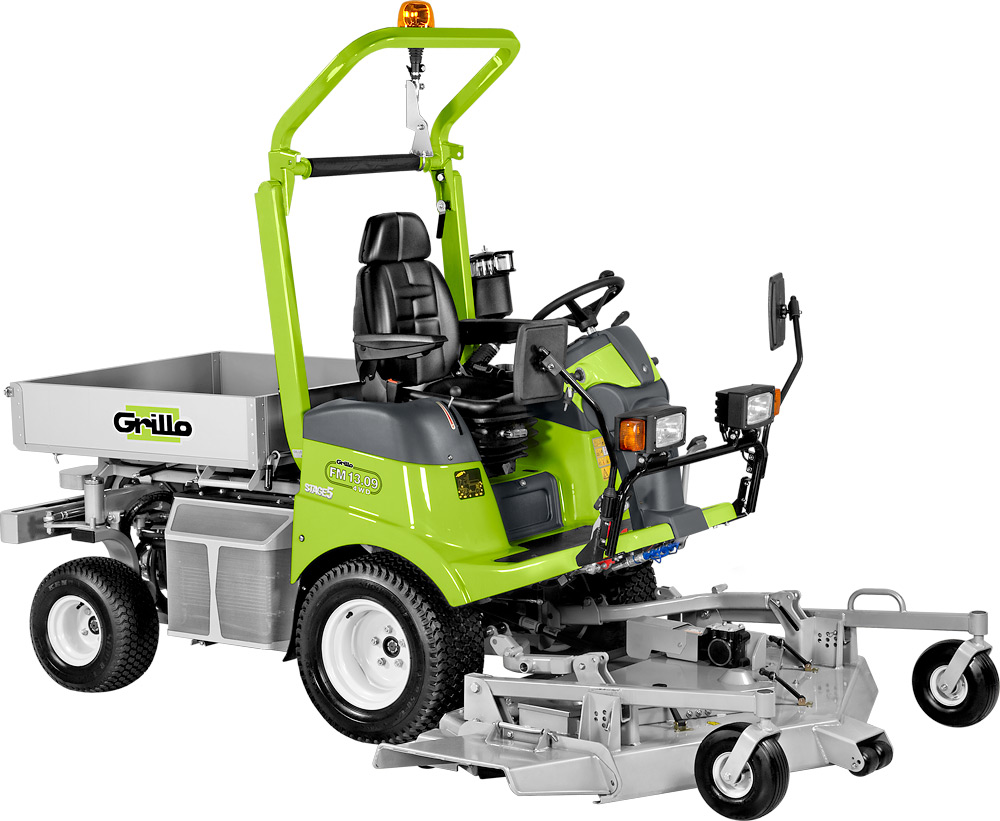

FM 13.09 Stage 5 4WD

Grillo FM 13.09 guarantees great hourly output both in large spaces and in small areas with obstacles such as plants and benches.
The front deck of the Grillo FM 13.09, together with the comfortable driving position with pneumatic sprung seat, allow an inimitable working visibility.
The deck is floating with hydraulic assistance and allows a regular and precise cut even in terrain with bumps or dips. The cutting quality is exceptional, even in difficult conditions of wet and tall grass. The inner steering radius of just 31 cm and the automatic or manual differential lock allow to easily overcome any obstacles. The rear axle is tilting and allows to easily overcome pavements and kerbs, maintaining traction on the 4 wheels even on irregular terrain.

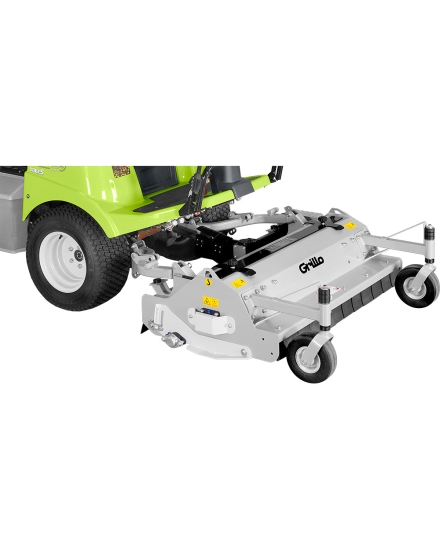

The 130 MP cutter deck with 3 blades and a cutting width of 130 cm is equipped with a rear discharge function and mulching cut. Switching between the two cutting modes, and also adjusting the cutting height, is done via elector-hydraulic push-button controls directly from the driver's seat.

The FM 13.09 has a steel caisson with aluminum sides, size 105×105 cm, which, once raised by means of a gas spring, provides easy access to the engine compartment cover.

It is also equipped with a self-cleaning radiator, with an electric fan that reverses the direction of rotation to eliminate any grass clippings on the radiator: this system is automatic and regulated by a sensor, but can also be activated manually.

The PTO clutch is hydraulic multi-plate with built-in blade brake and electrically actuated via a push button.
It guarantees high torque transmission with low usage and consequently long service life.
The ferrule-type blade brake is adjustable so that its efficiency can be maintained over time, recovering the wear and tear of the friction material. In addition, because of the arms used by Grillo, tipping and maintenance of the plates and replacement of accessories are easy.

The painting of Grillo machines is double-layer electrostatic powder. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second layer of paint and a further baking at 190°C give the characteristic hardness and gloss.
The Grillo FM 13.09 4WD is meticulously assembled and thoroughly tested by specialized personnel. The final testing of the FM 13.09 4WD includes a test with the engine running to check all functionality. A further and final guarantee for a high quality product.
