Power and efficiency! Maximum performance for a professional walking tractor!

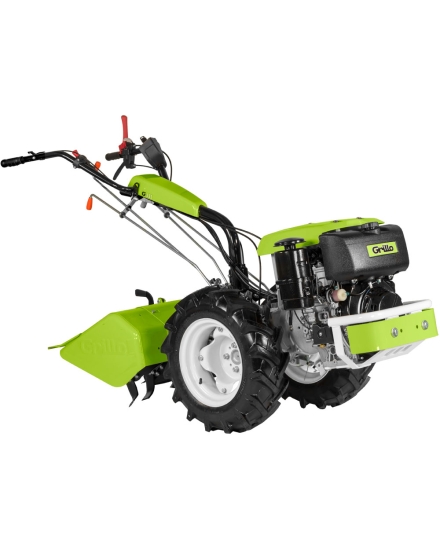

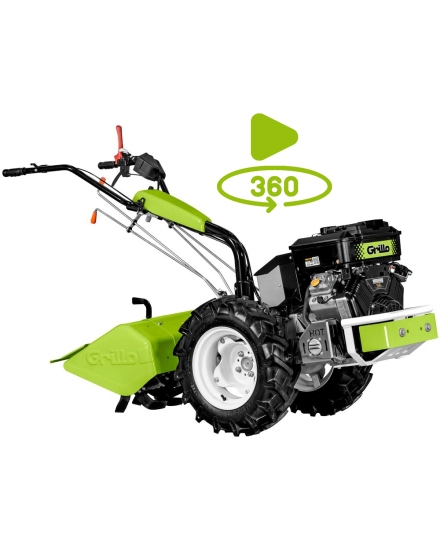

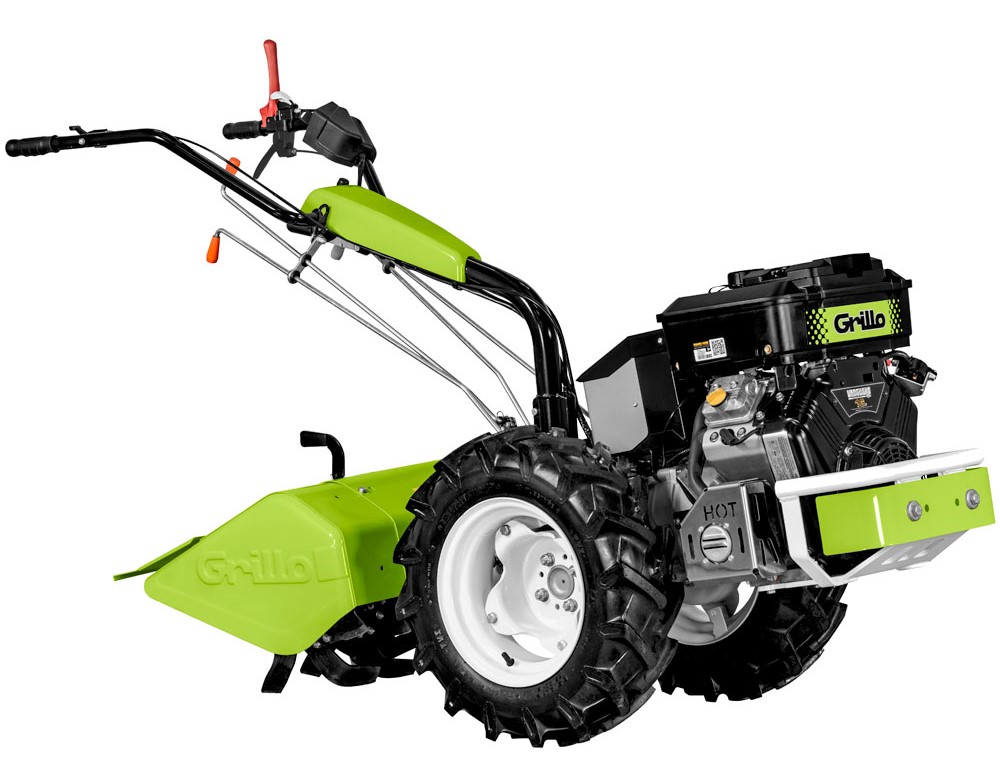

The Grillo G 131 (Diesel version) and G131 BC (gasoline version) are motorcultivators ideal in agriculture, horticulture, vegetable and vegetable gardens and large areas.
They are perfectly balanced, equipped with an oil-bath gearbox with 6 gears, including 4 forward and 2 reverse gears, and differential

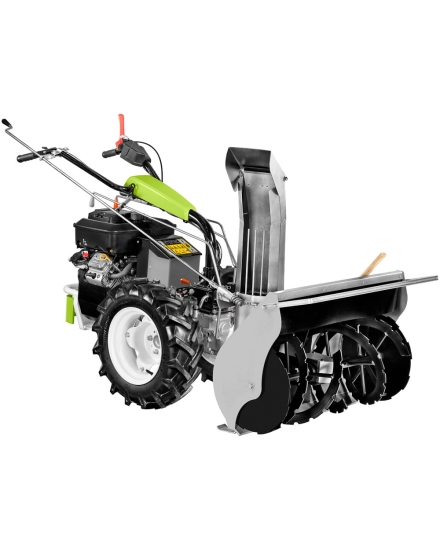

with locking. Numerous features make the G 131 / G131 BC always safe for the user. Many implements are available, both rear and front, thanks to the ability to rotate the handlebars 180°: tiller, cutterbar, mulcher, snowplow, and many others.

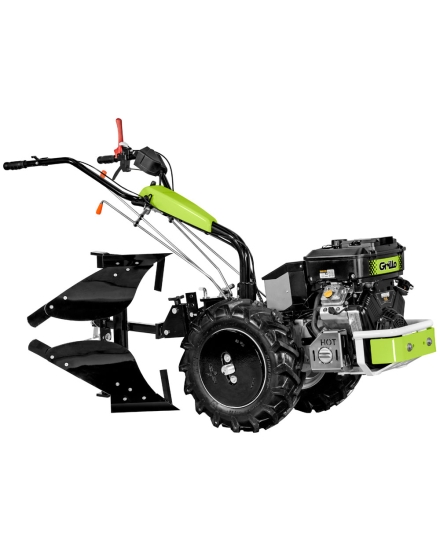

Implements are mounted via the sturdy flanged hitch. It is also possible to plow using the dedicated kit consisting of oversized wheels, screw-adjustable wideners, 180° turner plow and ballasts. To facilitate movement with the engine off, it is possible to disengage the wheel axle.
For better stability on slopes, the track width can be increased by 12 or 24 cm by using the wheel wideners.
| Engine |
Kohler KD15 440 Start manuale ad autoavvolgente ed elettrico con batteria 12v Supply diesel 441 cc, 1 Cylinder 11.0 HP, 8.1 KW Raffreddato ad aria Filtro aria a bagno d'olio Briggs & Stratton 16 Vanguard V-Twin OHV Start elettrico con batteria 12v Supply benzina 479 cc, 2 Cylinders 14.0 HP, 10.3 KW - 16.0 HP Raffreddato ad aria Filtro aria a secco con cartucce intercambiabili |
| Fuel tank capacity | 8,5 L (Vanguard 16) - 5 L (KD15 440) |
| Transmission | with oil bath gears |
| Gearbox | With clutch engagement. The walking tractor version has 4 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears |
| Clutch | Active with single dry disc |
| Differential locking | Differential with locking device by lever on the handlebar |

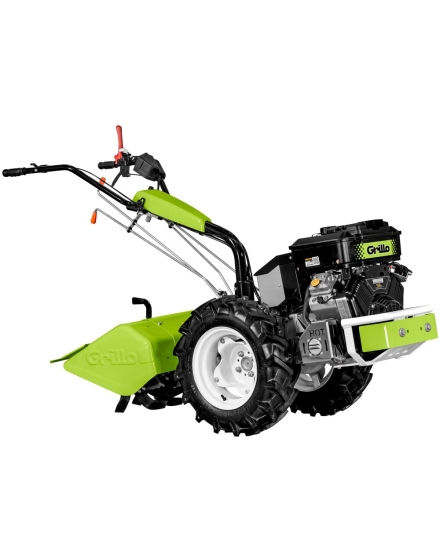

| Standard rotary tiller | Adjustable rotary tiller with x 4 tines Working width 700 mm |
| Hoes system diametre | 32 cm (tiller x 4) - 36 cm (tiller x 6) |
| Working width | Adjustable at 55 and 70 cm (85 cm with extension) |
| Working depth | 18 cm |
| P.T.O. | a higher one (upon request) synchronised with the gearbox; one lower at 1028 rpm in clockwise rotation with engine at 3000 rpm |
| Available tyres | Tractor 5.00-12 wheels (adjustable disks) and 6.5/80-12 wheels (adjustable disks). Wide steel wheels having diametre 46 x 12 cm |
| Speed | In the walking tractor version with 5.00-12 wheels 1st gear 1,2 km/h, 2nd gear 2,4 km/h, 3rd gear 3,4 km/h, 4th gear 7,1 km/h, 1st reverse gear 1,7 km/h, 2nd reverse gear 3,5 km/h. In the sickle bar version with 5.00-12 wheels 1st gear 1,7 km/h, 2nd |
| Service brake | Brake drum (kit upon request) |
| Handlebar | height and side adjustment, reversible |
| External sizes of the wheels | 55, 60, 70 or 75 cm with 5.00-12 wheels |
| Weight | 195 kg (with Vanguard 16) - 192 kg (with KD15 440) |
