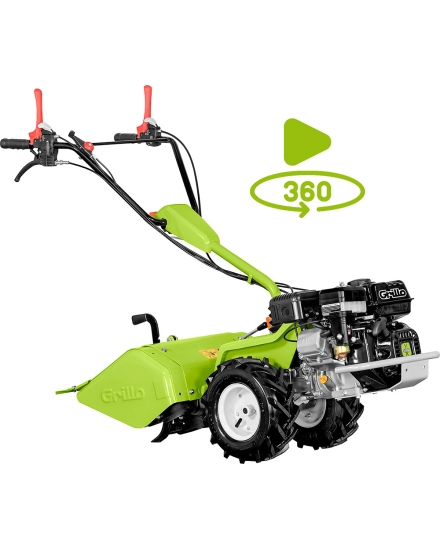

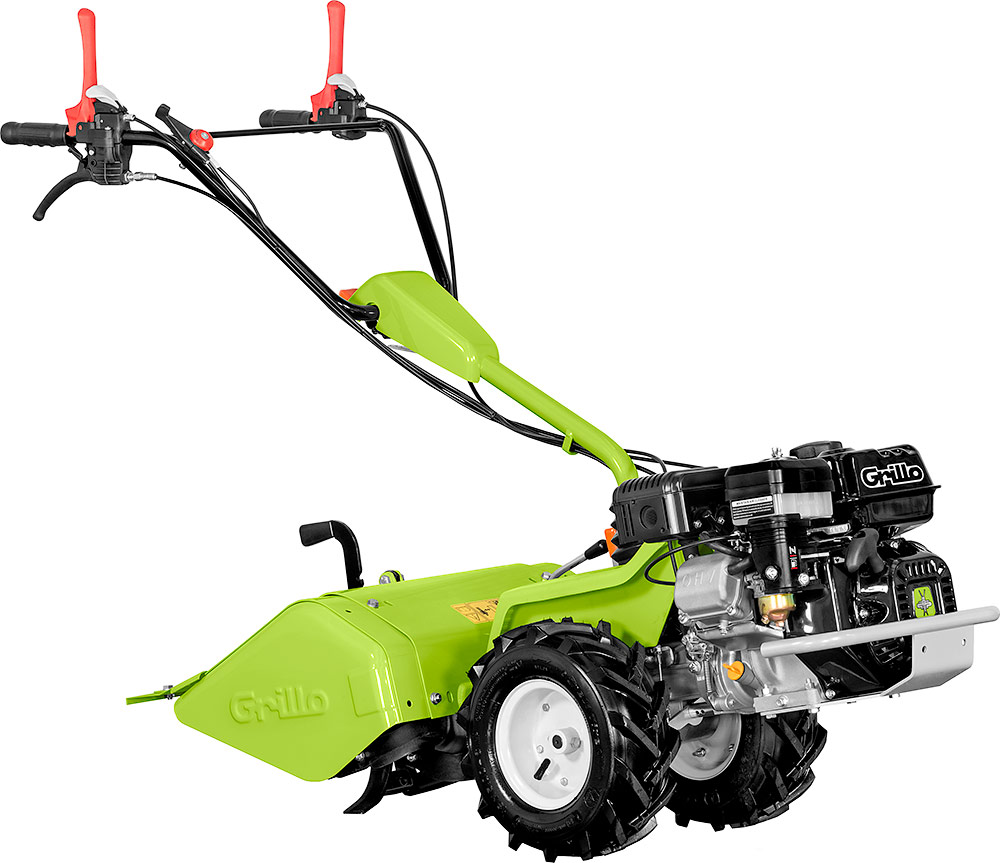

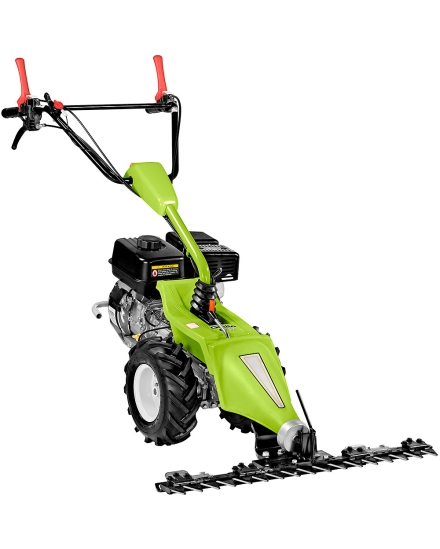

The Grillo G52 is a reversible, compact walking tractor, suitable for working in limited spaces both in horticulture and in gardening.
It is equipped with a 2 speed-gearbox with gears in oil-bath with forward and a reverse gear. It’s a comfortable walking tractor, easy to use and safe.

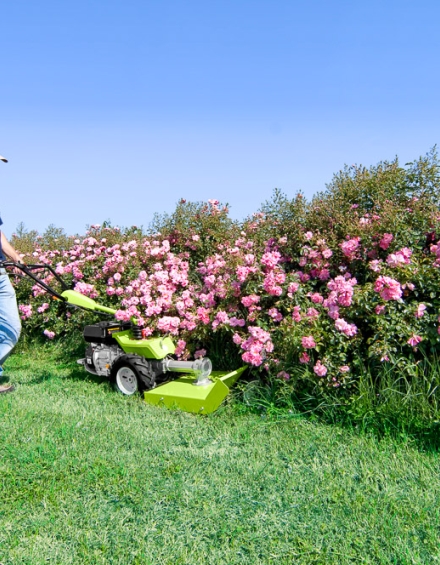

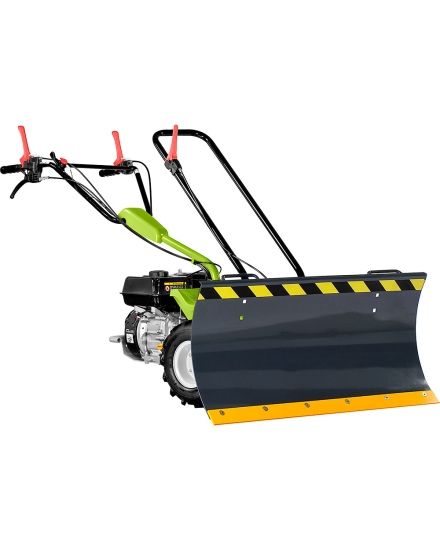

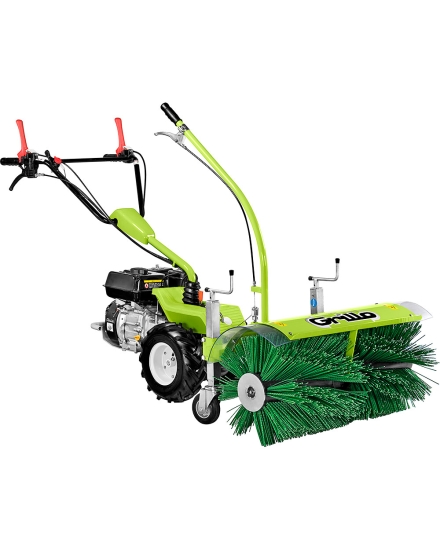

Several rear and front attachments can be connected to the machine, thanks to its 180° reversible handlebar: rotary tiller, sickle bar, mower etc. can be fitted via a coupling without the help of tools.
It is possible to achieve greater stability on slopes by widening the wheel track by 10 or 17 cm by means of the appropriate Grillo wheel extensions.
| Engine |
Loncin G200FA Start manuale a fune autoavvolgente Supply benzina 196 cc, 1 Cylinder 5.5 HP, 4.1 KW Raffreddato ad aria Filtro aria a bagno d'olio |
| Fuel tank capacity | 3 L |
| Transmission | with oil bath gears |
| Gearbox | 1 forward gear + 1 reverse gear |

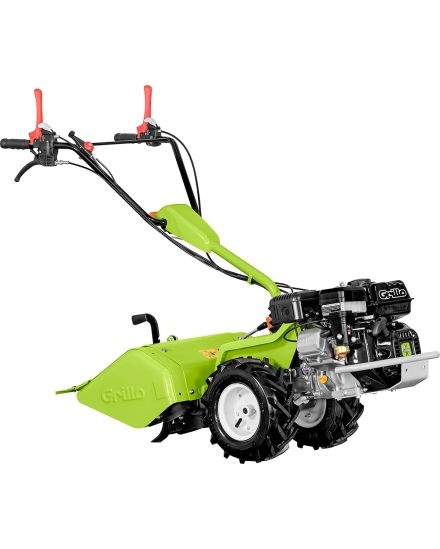

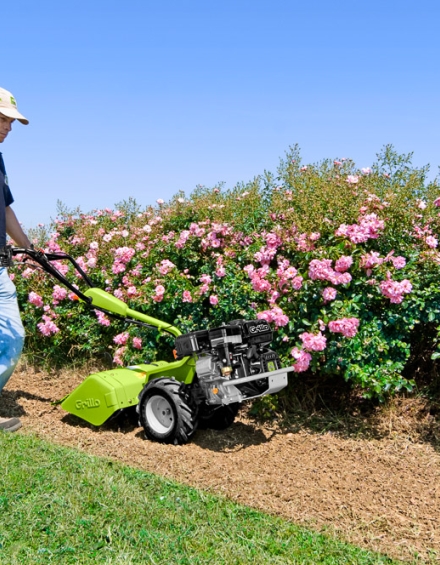

| Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 500 mm |
| Hoes system diametre | 26 cm |
| Working width | 50 cm |
| Working depth | 13 cm |
| P.T.O. | For the walking tractor version, 644 rpm with anticlockwise rotarion. For the sickle bar version 965 rpm with clockwise rotation |
| Available tyres | Tractor 13x5.00-6 wheels |
| Speed | For the walking tractor version 1st gear 1,4 km/h, reverse gear 2,2 km/h. For the sickle bar version 1st gear 2,2 km/h, reverse gear 1,4 km/h. |
| Handlebar | height and side adjustment. Fitted on anti-vibration blocks |
| External sizes of the wheels | 50 cm with 13x5.00-6 wheels |
| Weight | Standard version: 67 kg |
