Walking Tractors

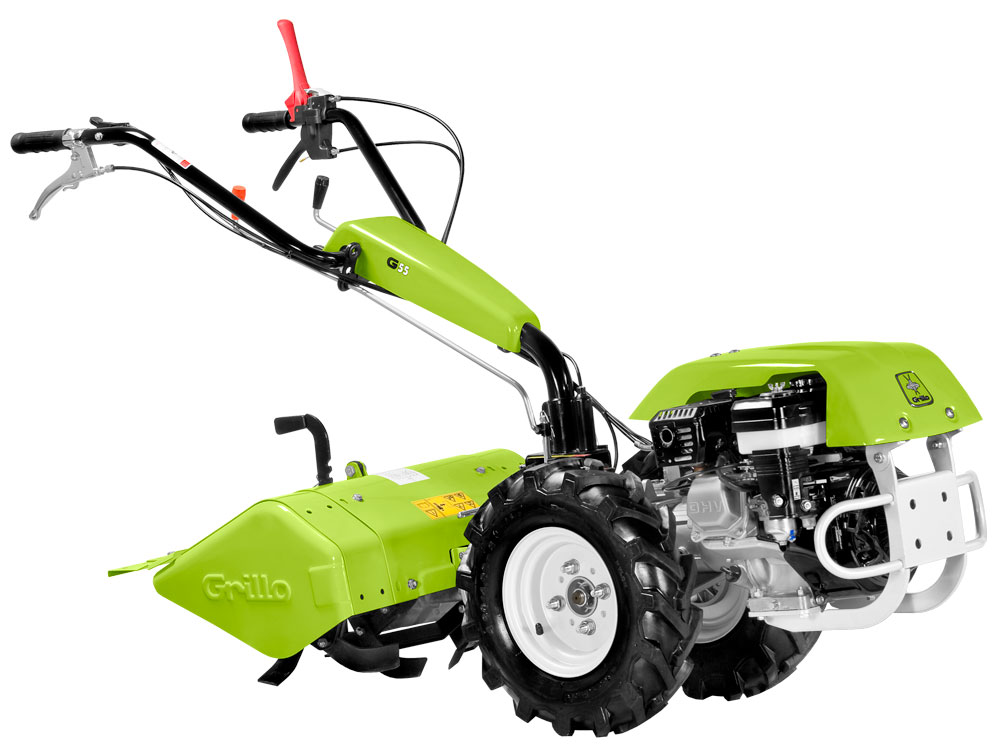

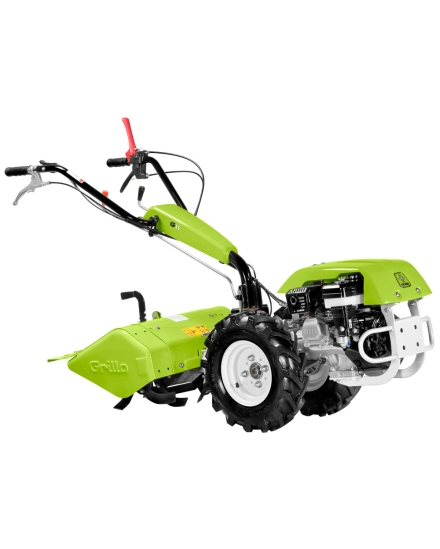

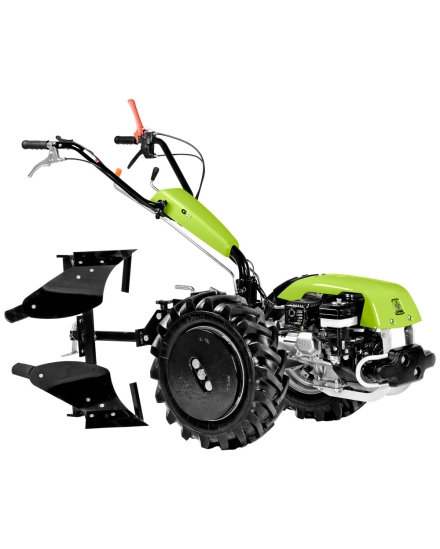

G 55

Versatile and robust walking, with a quick coupling as a standard feature.

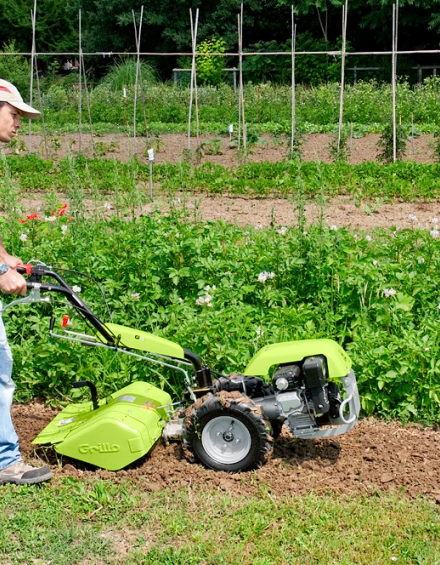

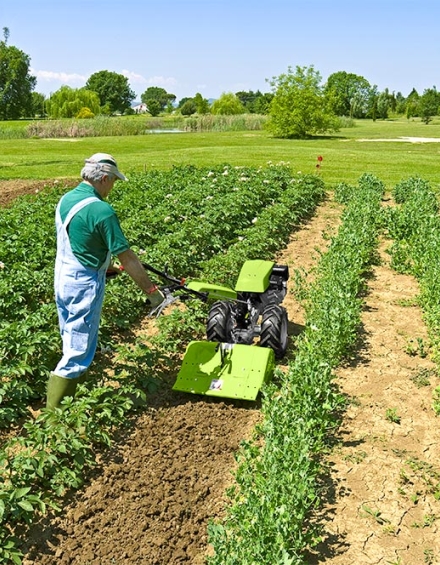

The Grillo G55 is an appropriate walking tractor for all kind of works on medium-sized areas.
It is fitted with a 4 speed-gearbox with gears in oil-bath, with 2 forward and 2 reverse gears.
G55 is an easily manoeuvrable and safe machine and offers the possibility to attach several front and rear-mounted attachments. Its handlebar can be reversed through 180° via a lever. The attachments can be connected through a coupling without the need to use tools. There is also the possibility to attach a plough kit containing large wheels, adjustable extensions, 180° turn-wrest plough and wheel weights.
It is possible to achieve a greater stability on slopes by widening the wheel track by 12 or 24 cm by means of the appropriate Grillo wheel extensions.

Engine Loncin G200FA
Start manuale a fune autoavvolgente
Supply benzina
196 cc, 1 Cylinder
5.5 HP, 4.1 KW
Raffreddato ad aria
Filtro aria a bagno d'olio
Honda GX200 OHV
Start manuale a fune autoavvolgente
Supply benzina
196 cc, 1 Cylinder
5.5 HP, 4.1 KW
Raffreddato ad aria
Filtro aria a bagno d'olio
Fuel tank capacity 3,6 L eng. 3000 OHC - 3,1 L eng. GX200 OHC
Transmission with oil bath gears
Gearbox With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
Reverse gear unit by lever
Clutch Conic active
Standard rotary tiller Adjustable rotary tiller with x 4 tines. Working width 58 cm
Hoes system diametre 26 cm
Working width Adjustable at 58 and 50 cm
Working depth 13 cm
P.T.O. 965 rpm regardless of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
Available tyres Pneumatic wheels tractor 4.00-8 (fixed disks), 16x6.50-8 (fixed disks), 5.00-10 (adjustable disks)
Speed With 4.00-8 wheels 1st gear 1,1 km/h, 2nd gear 2,6 km/h
Handlebar height and side adjustment. Fitted on anti-vibration blocks
Weight Standard version: 86 kg
Grillo original accessories are designed to be easily installed, allowing you to spend more time working on your garden or grounds. Transform your Grillo machine into a versatile partner.
Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair
Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair
The adjustable discs permit to modify the external width of the wheels according to the type of l...
Pneumatic tractor wheels 4.00-8 (fixed disks with two positions); pair
Pneumatic tractor wheels 4.00-8 (fixed disks with two positions); pair
Pneumatic wheels 16x6.50-8 (fixed disks) (Pair)
Pneumatic wheels 16x6.50-8 (fixed disks) (Pair)
Pneumatic tractor wheels 5.00-12 (adjustable disks) for plough (pair)
Pneumatic tractor wheels 5.00-12 (adjustable disks) for plough (pair)
Adjustable furrower (item no. 942722 needed, 5.00-10 pneumatic wheels and wheel weights item no. 9G1212 are recommended)
Adjustable furrower (item no. 942722 needed, 5.00-10 pneumatic wheels and wheel weights item no. 9G1212 are recommended)

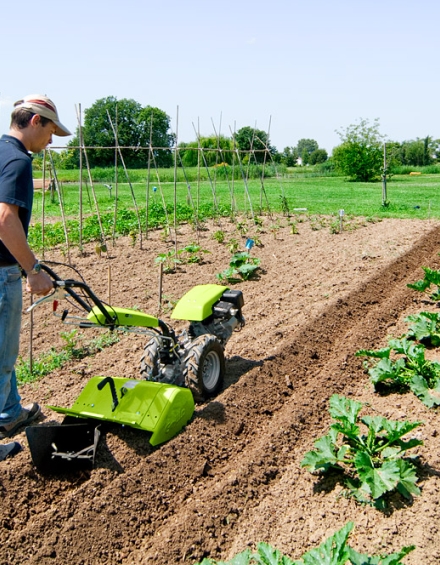

It is attached to the rear of the tiller and works in conjunction with it. It is used to mark out...
Adjustable furrower behind the rotary tiller (cod. 945022)
Adjustable furrower behind the rotary tiller (cod. 945022)
This implement carry out accurate furrows of any dimension. The furrower behind the rotary tiller...
Wheel weights 20 kg per pair for wheels 4.00-8, 4.00-10 and 5.00-10 (fixed and adjustable)
Wheel weights 20 kg per pair for wheels 4.00-8, 4.00-10 and 5.00-10 (fixed and adjustable)
Wheel-weights 11kg for GX 160 engine
Wheel-weights 11kg for GX 160 engine
Weight for front blade
Weight for front blade

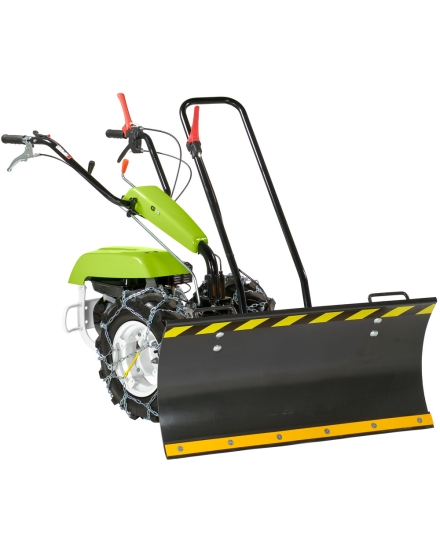

Front blade 100 cm
Front blade 100 cm
Rubber end for blade 100 cm
Rubber end for blade 100 cm
Adjustable rotary tiller 58 cm (4x4 tines)
Adjustable rotary tiller 58 cm (4x4 tines)
Wheel extensions 12 cm (pair) (fit 2 pairs max)
Wheel extensions 12 cm (pair) (fit 2 pairs max)
Rotary tiller support wheel
Rotary tiller support wheel

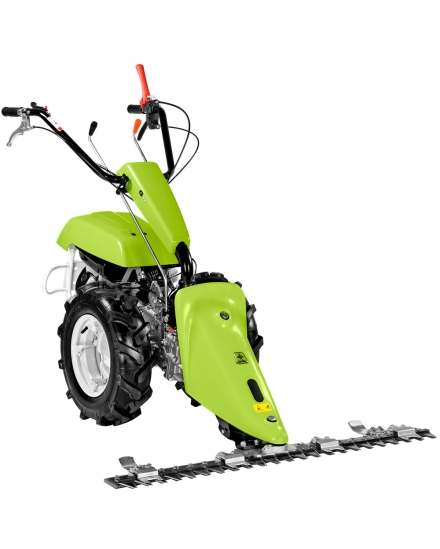

Double blade central cutter bar 117 cm with action
Double blade central cutter bar 117 cm with action
Cutter bar action with quick coupling
Cutter bar action with quick coupling
Cutter bar side protections for item 9L2811 and item 9L6911
Cutter bar side protections for item 9L2811 and item 9L6911
Cutter bar Tirol side protection
Cutter bar Tirol side protection
Frame for attachments for single furrow plough
Frame for attachments for single furrow plough
Tow bar
Tow bar
Spacers 25 mm for engine
Spacers 25 mm for engine
It can be fitted to : GX200 gasoline G300FA gasoline KD15-350 diesel, recoil starter KD15-440 die...
50CM BRUSH MOWER G55/GF2
50CM BRUSH MOWER G55/GF2
Snow chains for 4.00-8 wheels (pair)
Snow chains for 4.00-8 wheels (pair)
Snow chains for rear wheels 16x6.50-8 Climber 7 series (pair)
Snow chains for rear wheels 16x6.50-8 Climber 7 series (pair)
Plough kit for G55
Plough kit for G55
The plough kit comprehends: Turn-wrest plough 180°, frame for attachments, wheel weights, wei...
Transport Sulky with brake
Transport Sulky with brake
Item 9F4212 needed for G55, G85, G107, G108 and G110. Item 9F4712 needed for G131BC.
Single-blade PRO cutter bar 117 cm with crank action
Single-blade PRO cutter bar 117 cm with crank action
Middle cut fingers central cutter bar 110 with crank action
Middle cut fingers central cutter bar 110 with crank action
